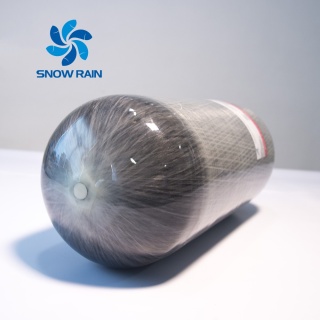

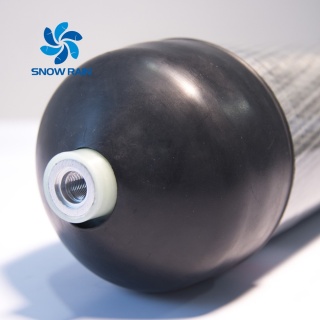

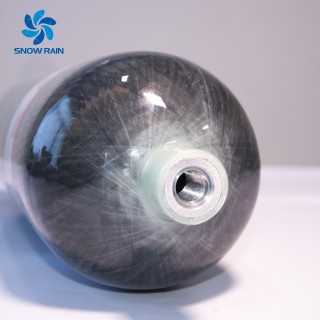

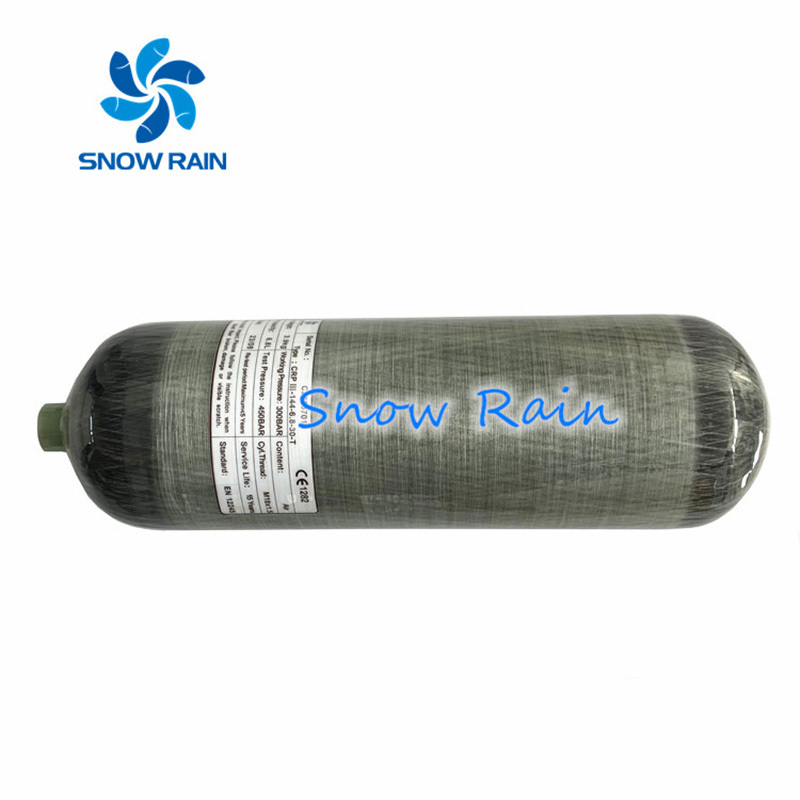

Breathing Apparatus Carbon Fiber 300 Bar Scba Cylinder
Brand: Snow Rain
Product origin: Shenyang, Liaoning
Delivery time: 7~10 days
Supply capacity: 400,000 pieces/year
1. Our scba bottle is made of high-strength aluminum 6061 liner, carbon fiber, and glass fiber. The working pressure it can withstand is 300bar.
2. Our scba bottles have CE certificates issued by BV and product testing reports issued by BV to ensure the high quality of our scba bottles.

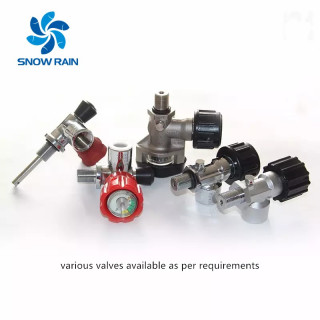

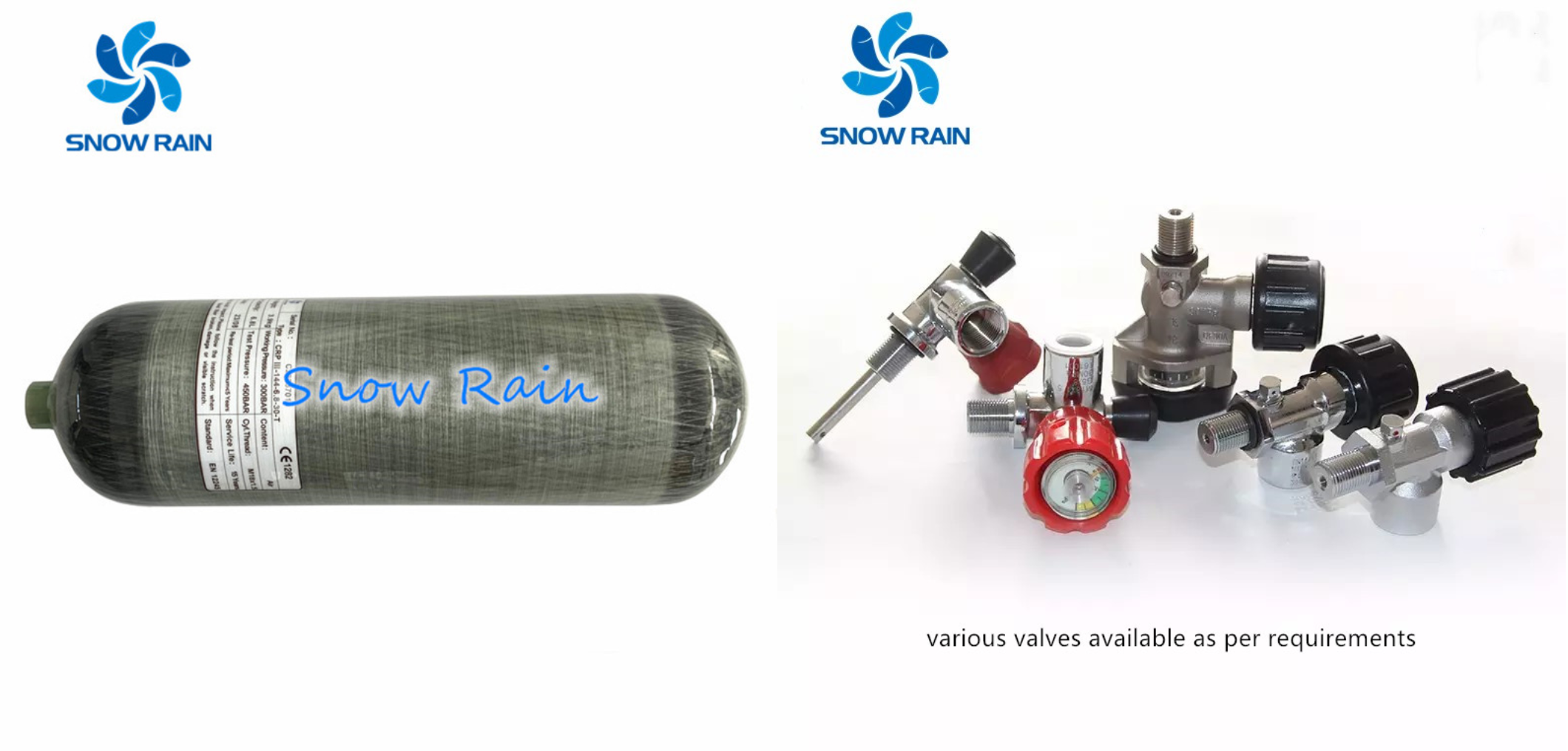

3. Our scba bottle valves and other spare parts are supplied together, and free valve installation and leakage testing services are provided.
Introduction of 300 bar scba cylinder:
Using a high-strength aluminum liner and carbon fiber overlay, this 300-bar SCBA carbon fiber air cylinder boasts a very durable structure. The product is manufactured in accordance with EN 12245 and holds CE certification, which means it can be effectively used for firefighting, emergency rescue operations as well as industrial respiratory systems. We have available scanned copies of all certification proof, serial number, and test report of the product. Also, we can help you with organizing third-party inspections by SGS, BV, etc. The operation of each cylinder is comprehensively checked, including hydrolysis, bursting, and air-tight testing to ensure that it is capable of withstanding high pressure conditions, efficiently, and for a long time .

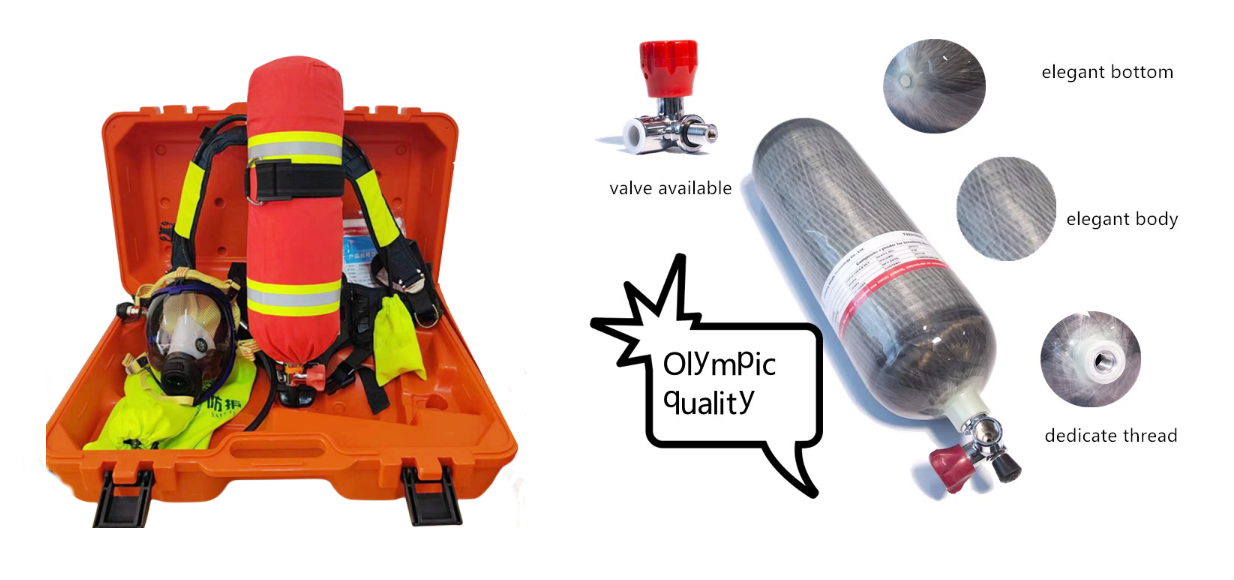

Advantages of cylinder breathing apparatus:
1. Compared with traditional metals, carbon fiber materials have higher strength and lighter weight, which makes the scba bottle lighter, helping to reduce the user's burden and extend the use time.
2. The cylinder breathing apparatus performs well in terms of high intensity and is sufficient to withstand gas storage under high pressure conditions to ensure the normal operation of the respirator.
3. Carbon fiber usually shows good corrosion resistance, which is crucial for the cylinder breathing apparatus to be used for a long time in various environments, especially in situations such as handling hazardous chemicals.
4. Our cylinder breathing apparatus is designed with safety factors in mind. The carbon fiber material has a certain degree of toughness in the face of impact or accidents, mitigating potential dangers.
5. Our cylinder breathing apparatus is designed to store high-pressure gas, usually working at a pressure of 300 Bar (4500 psi), to provide users with longer breathing support.
6. The carbon fiber has a unique appearance and a strong sense of technology. 300 bar scba cylinder not only improves the visual appeal of the scba bottle, but also demonstrates the use of advanced technology.
Parameters of scba bottle:
| SCBA and EEBD Gas Cylinder Tehnical Data Sheet | |||||
| Specification/Model | Volume（L） | Outside Diameter（mm） | Length（mm） | Weight（kg） | Working Pressure(bar） |
| CRPIII-93-0.8-30-T | 0.8 | 101 | 200 | 0.7 | 300 |
| CRPIII-93-1.12-30-T | 1.12 | 101 | 250 | 0.9 | 300 |
| CRPIII-88-2.0-30-T | 2 | 106 | 383 | 1.9 | 300 |
| CRPIII-120-2.5-30-T | 2.5 | 129 | 310 | 1.6 | 300 |
| CRPIII-124-2.7-30-T | 2.7 | 132 | 310 | 1.7 | 300 |
| CRPIII-105-3.0-30-T | 3.0L | 113 | 453 | 2.2 | 300 |
| CRPIII-124-4.7-30-T | 4.7L | 137 | 495 | 3.5 | 300 |
| CRPIII-144-6.8-30-T | 6.8L | 158 | 528 | 3.9 | 300 |
| CRPIII-162-9.0-30-T | 9.0L | 176 | 562 | 5.2 | 300 |
| CRPIII-192-12-30-T | 12 | 208 | 575 | 6.5 | 300 |
| CRPIII-192-20-30-T | 20 | 208 | 840 | 9 | 300 |
| CRPIII-106-2.0-20-T | 2 | 113 | 330 | 1.4 | 200 |
| CRPIII-120-2.5-20-T | 2.5 | 127 | 309 | 1.6 | 200 |
| CRPIII-106-3.0-20-T | 3 | 113 | 465 | 2 | 200 |
| We can manufacture aluminum gas cylinder from 0.19L to 200L, for other carbon fiber gas cylinders blow 1L, please visit our PCP Tank And Paintball Tank category. We can also manufacture other specifications as per requirement. Please feel free to contact us for inquiry. | |||||
Are you looking for a professional manufacturer of high-pressure gas cylinders?
Snowrain is your best choice.
Contact Us Today to request our latest B2B price list and apply for a Commercial Sample.Technical Specifications
The gas cylinder features a working pressure of 300 Bar (4500 PSI) and supports a range of capacities from 2L to 9L. Utilizing a full carbon fiber wrapping process, it weighs over 50% less than traditional steel cylinders, making it ideally suited for extended periods of back-mounted use. The product is compatible with SCBA respiratory systems and international standard valve interfaces (supporting specifications such as DIN threads), and is designed for the storage of breathing gases, such as compressed air. The standard design offers a service life of up to 20 years.
Customer Applications
If we talk about the product usage, it is mainly in firefighting SCBA systems, industrial respiratory equipment, and emergency rescue situations. For example, we have provided bulk orders of 300-bar carbon fiber SCBA cylinders to firefighting equipment clients in Southeast Asia for their local respiratory apparatus projects. Not only have customers praised the product's lightweight design and stable air supply, but they also acknowledged its reliable performance even in the most challenging rescue situations; so they have decided to continue their long-term procurement partnerships with us.

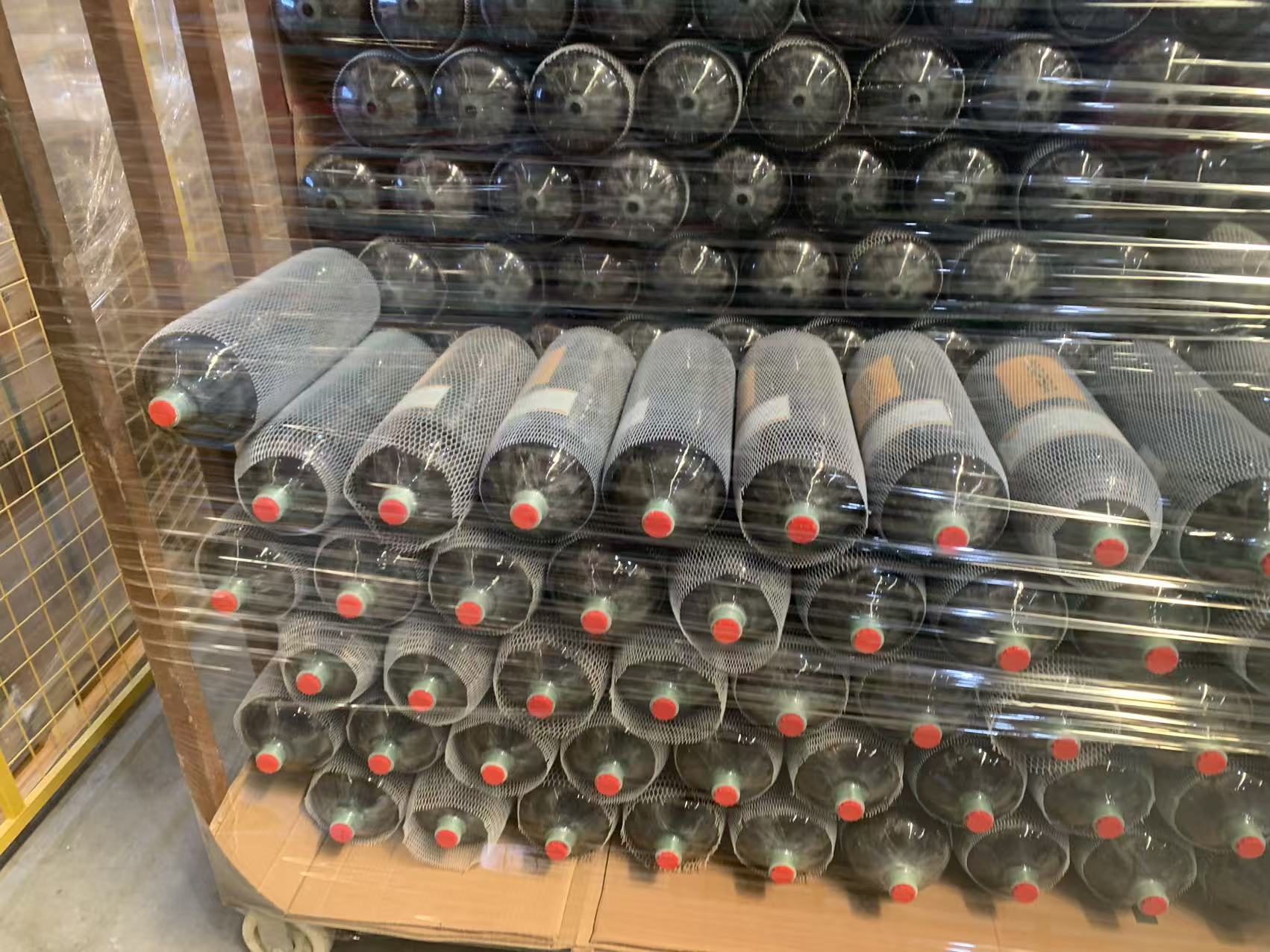

Packaging and Service
We can handle sample orders and we also provide OEM customization services (including logos, colors, and labeling). The standard MOQ is typically 50 units, with the standard lead time of about 2 to 4 weeks. We give a guarantee of 12 months against defects and offer technical support for the product life cycle; product specifications, price quotes, and certification documents can be downloaded. Gas cylinders should only be handled by professional filling facilities. Besides, they should be kept away from high temperatures, physical impacts, and over-pressurization during use.
About us:
Established in 2002, Snow Rain Technology operates a modern production facility spanning 159,840 square meters and employs a professional workforce of over 1,200, with an annual output exceeding one million gas cylinders. Equipped with advanced carbon fiber winding production lines and automated inspection equipment, the company strictly adheres to rigorous quality control protocols. Its products are exported to more than 100 countries and regions worldwide, enabling the company to reliably support the large-volume procurement needs of its international clientele.
FAQ:
Q: Which international standards does the product comply with?
A: The product meets international standards including EN12245, ISO11119, DOT, and has got CE certification; relevant certification documents can be provided if required.
Q: Which gases are the SCBA cylinders suitable for?
A: They can be used mainly to store breathing gases like compressed air. These types of cylinders are generally employed in both firefighting and industrial respiratory systems.
Q: What are the MOQ, lead time, and after-sales policies?
A: Generally, the MOQ is 50 units, while the lead time usually spans 2–4 weeks. This product is backed with a 12-month quality warranty and after-sales support is provided indefinitely.
